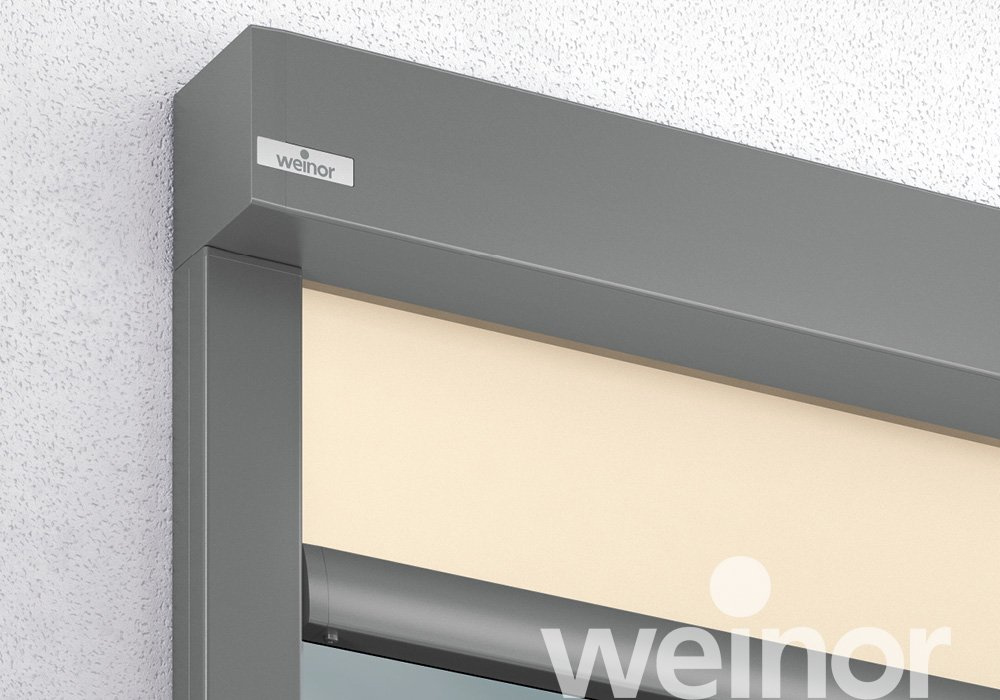

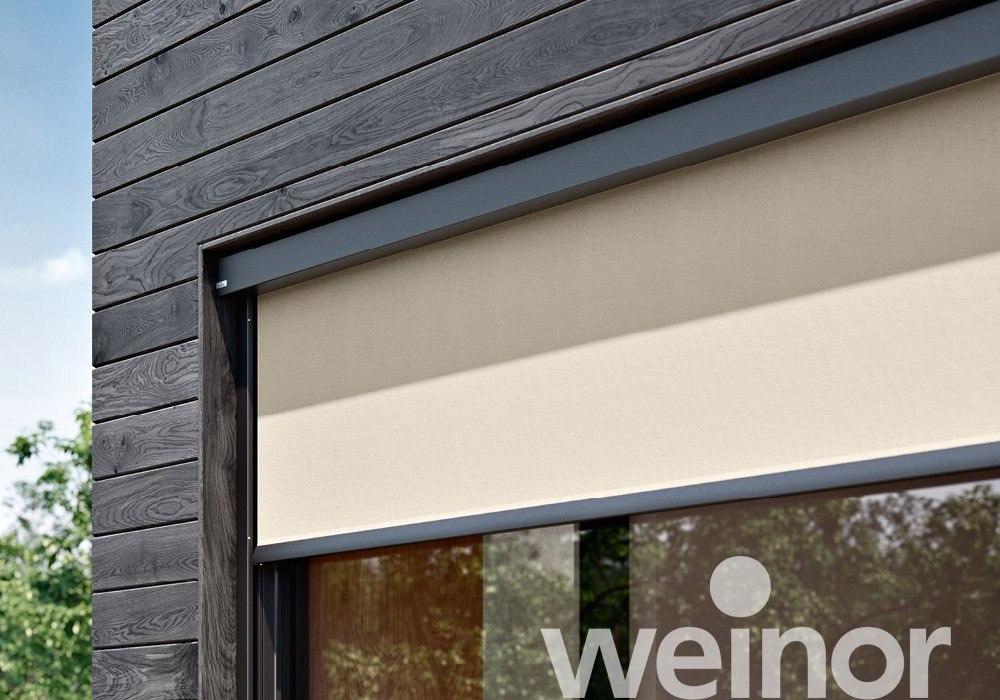

A small discreet cassette
The innovative patented OptiFlow system® means your cassette looks very small and subtle, even with very large fabrics up to 6 metre wide. It measures just 7.5 cm for the rail and rope, regardless of whether it’s in the round or square version.

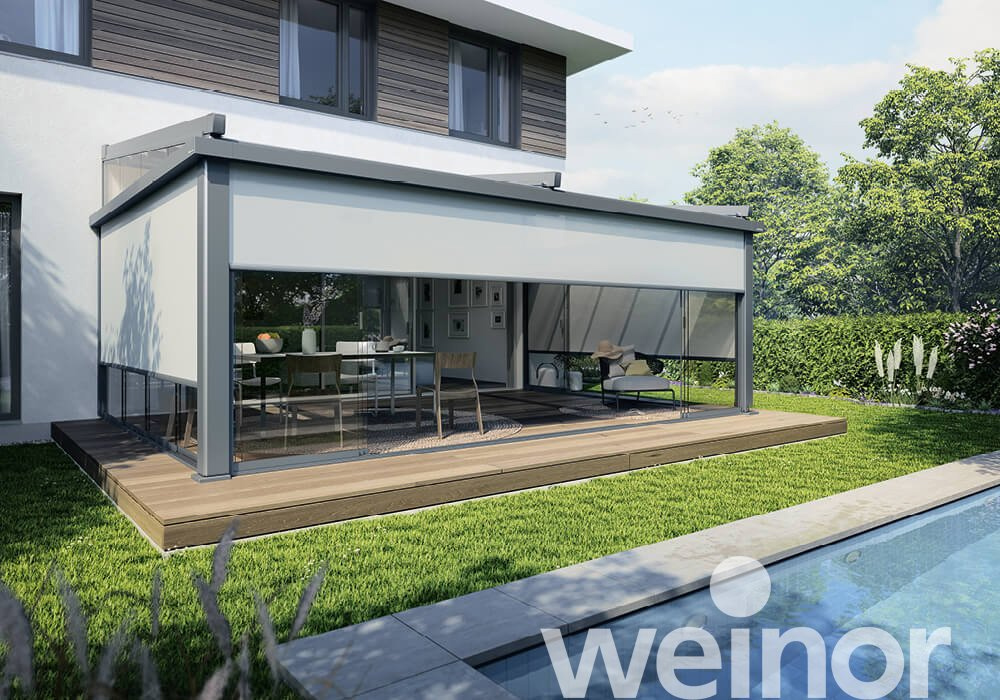

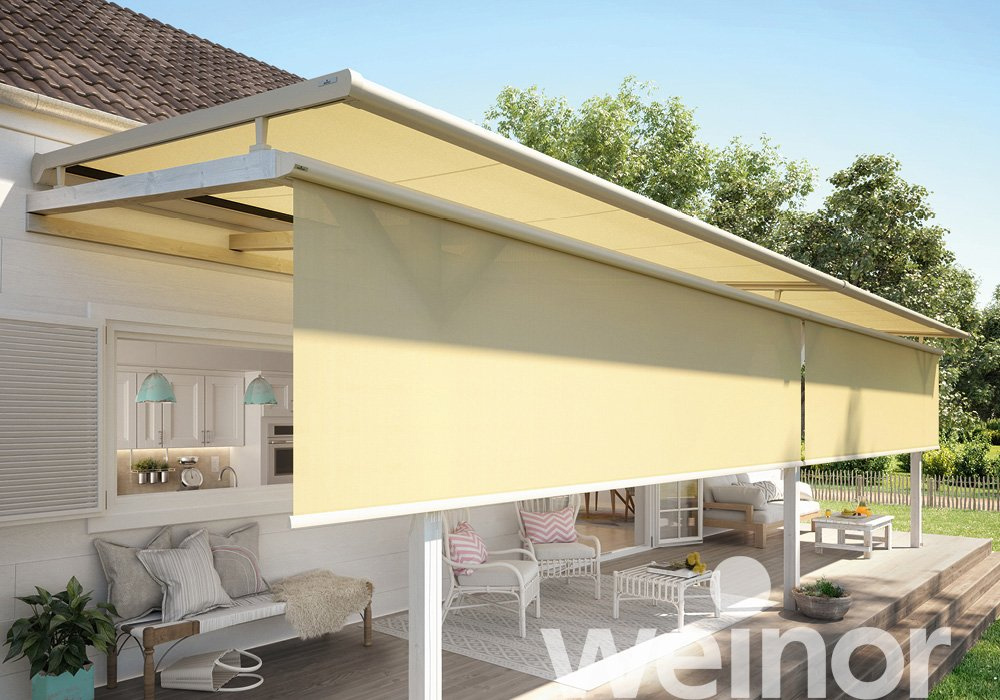

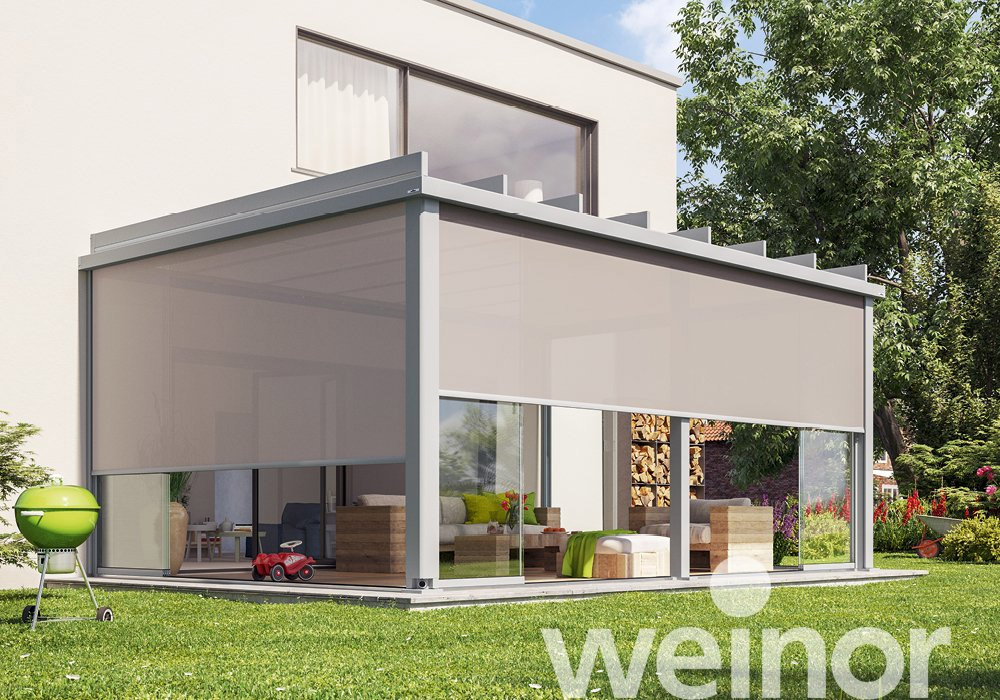

Protected terrace/patio
To cover and living space but especially situations where there is low lying sun and/or wind, VertiTex II can be flexibly and subtly mounted on the patio roof to provide reliable all-round protection.
Protected terrace/patio
To cover and living space but especially situations where there is low lying sun and/or wind, VertiTex II can be flexibly and subtly mounted on the patio roof to provide reliable all-round protection.

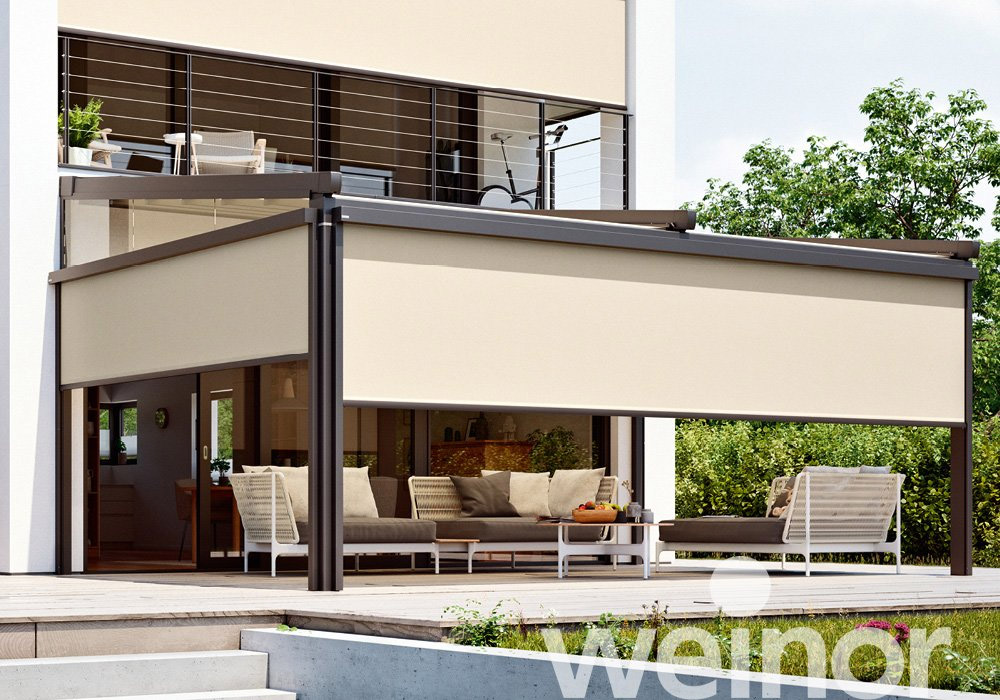

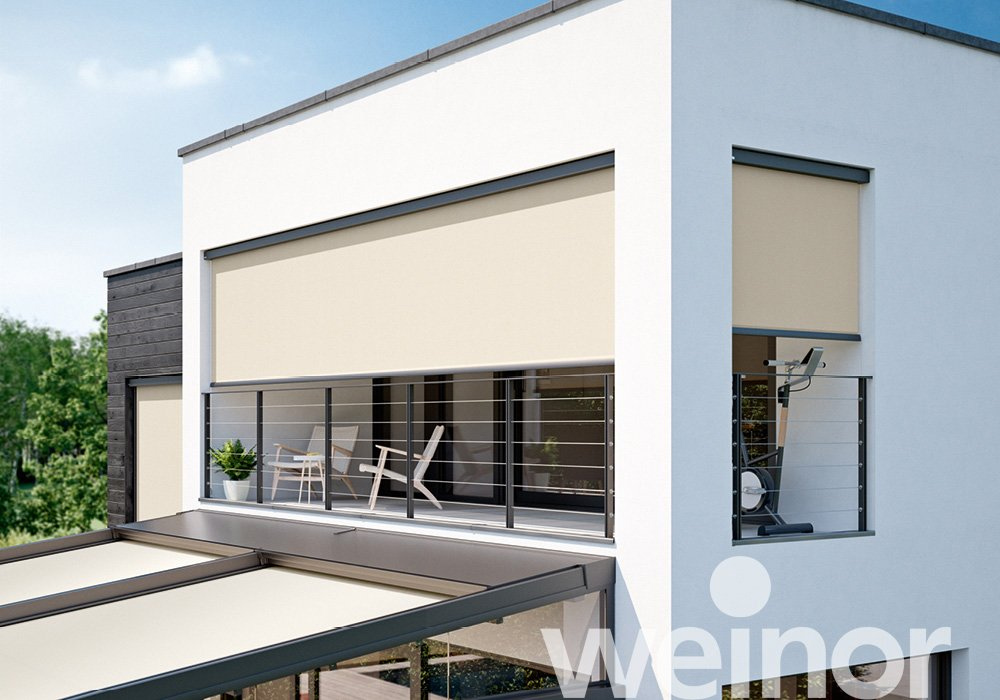

Balcony vertical protection from the sun
As an alternative to a sunshade, VertiTex II also offers privacy and sun protection on any balcony or terrace.

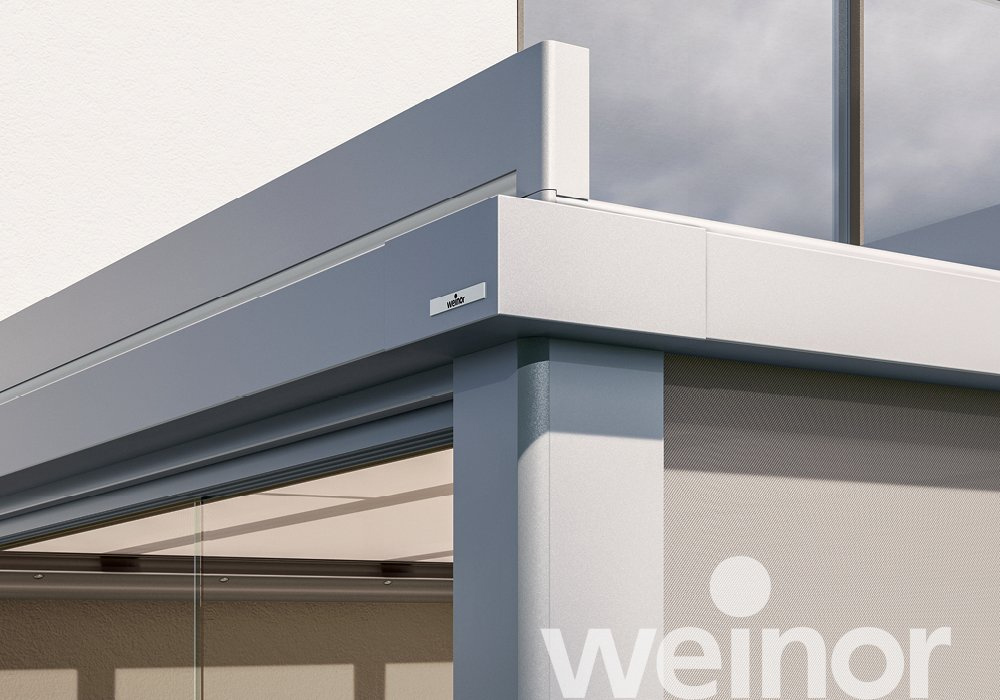

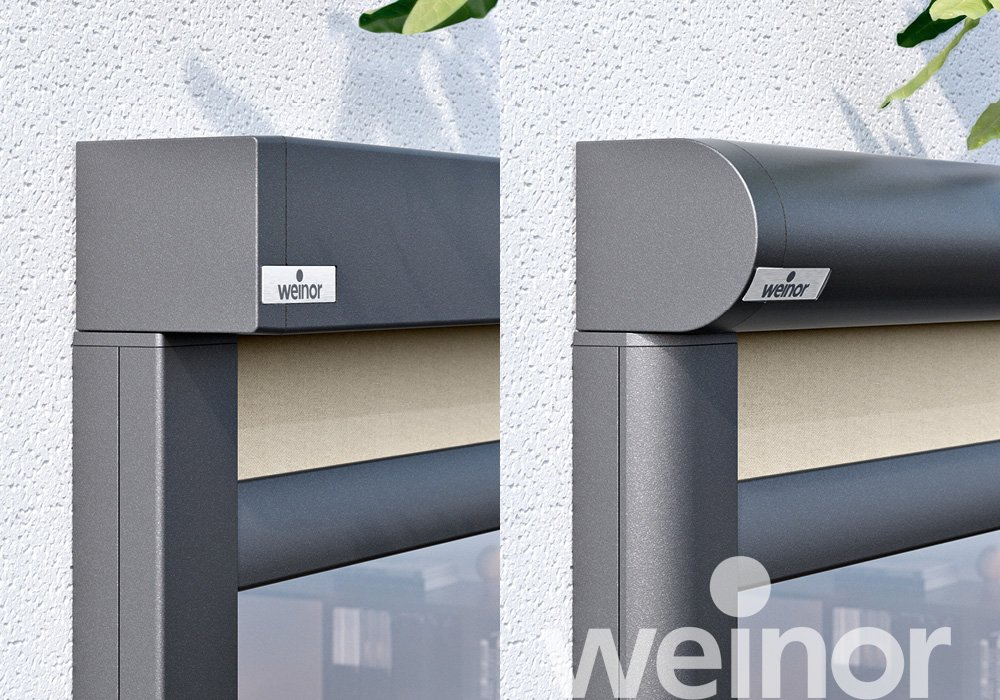

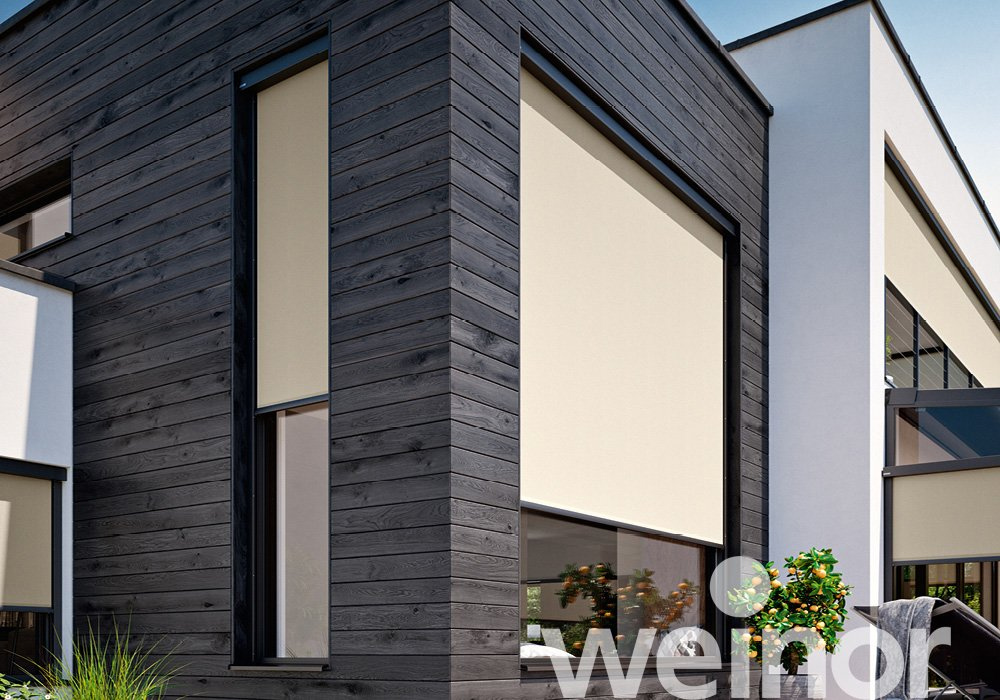

Innovative modern design
Whether it’s round or square, the VertiTex II cassette adapts perfectly to your building’s architecture and living space.
Innovative modern design
Whether it’s round or square, the VertiTex II cassette adapts perfectly to your building’s architecture and living space.

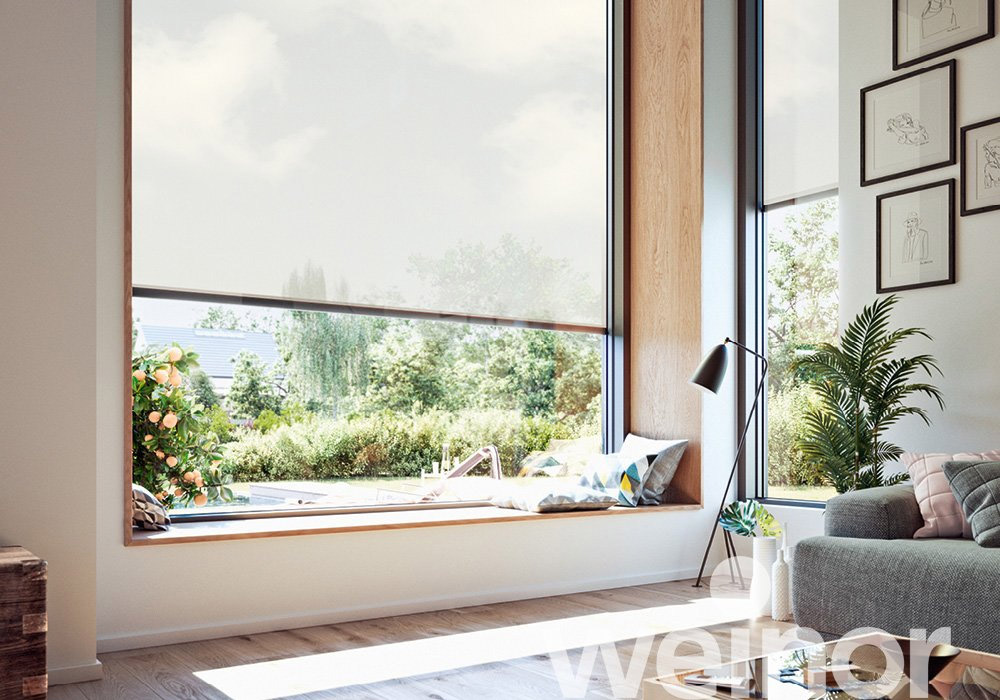

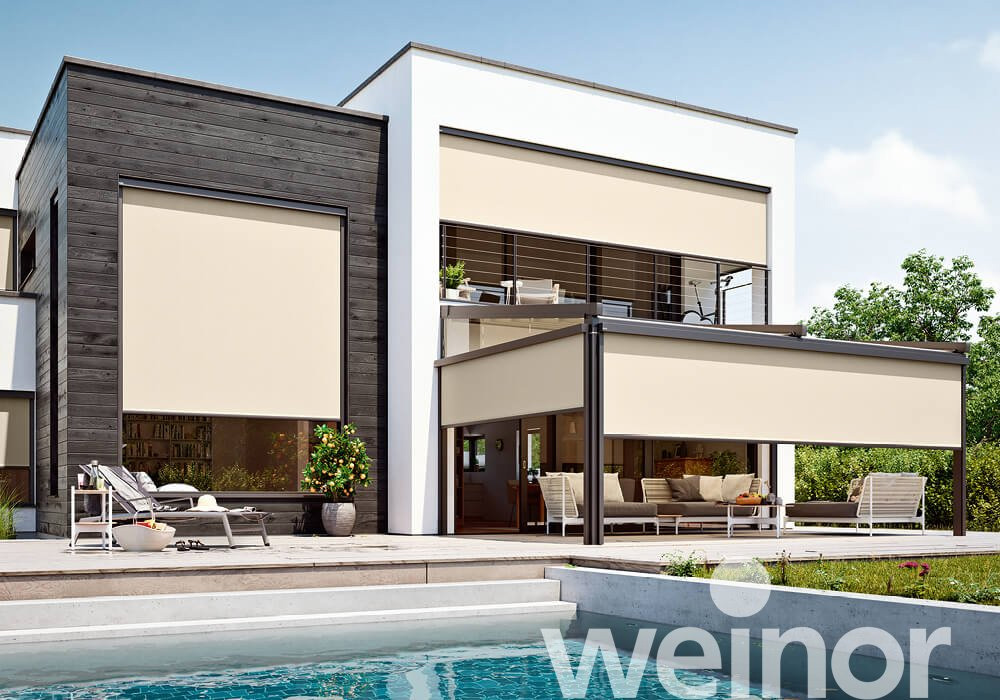

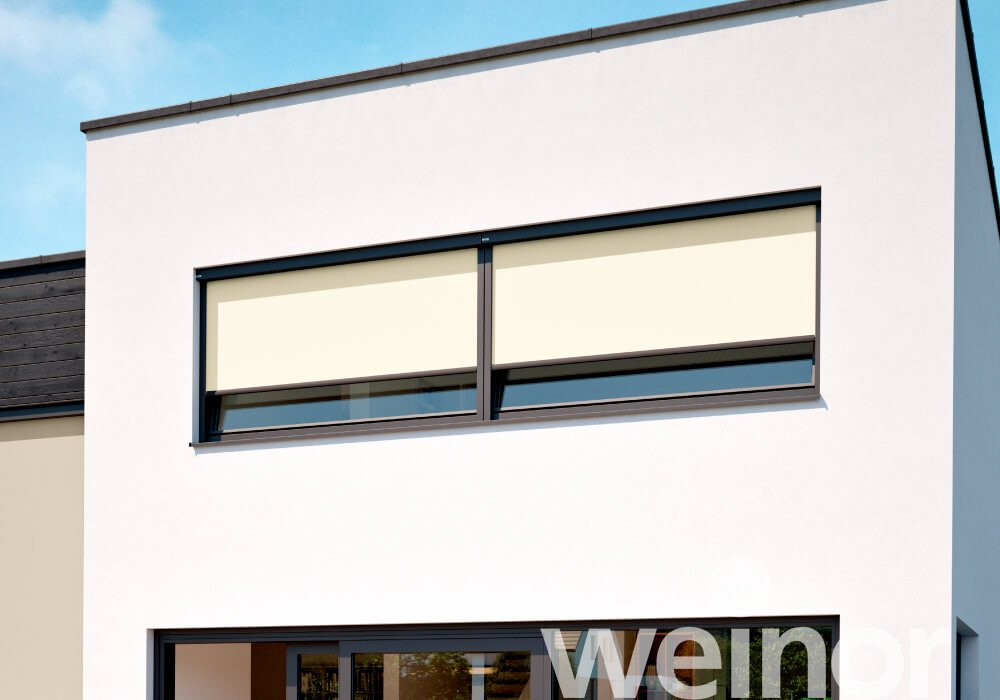

Luxury textiles across your windows
The VertiTex II is a suitable alternative to external shading systems or roller shutters and brings luxury to any application. It can be used outside and inside. With a transparent fabric you ensure pleasant lighting whilst maintaining privacy and outside visibility.

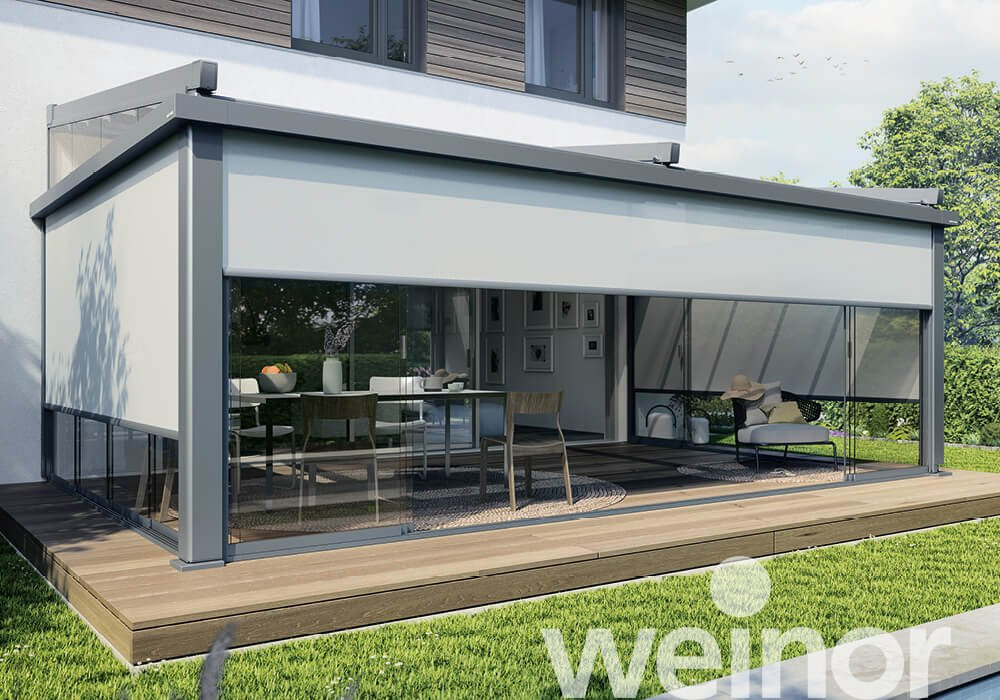

VertiTex Zip or VertiTex II guide rail
Your choice: The Zip version’s fabric is held captive on both sides for an extremely taut fabric and maximum wind stability, or the guide rail version for a subtle gap.
VertiTex Zip or VertiTex II guide rail
Your choice: The Zip version’s fabric is held captive on both sides for an extremely taut fabric and maximum wind stability, or the guide rail version for a subtle gap.

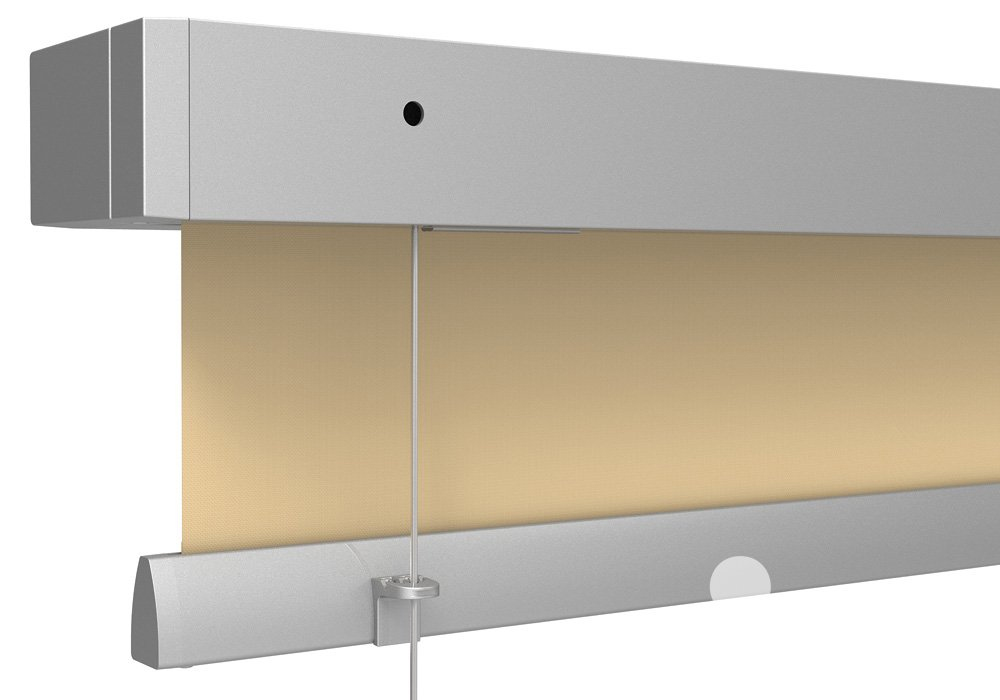

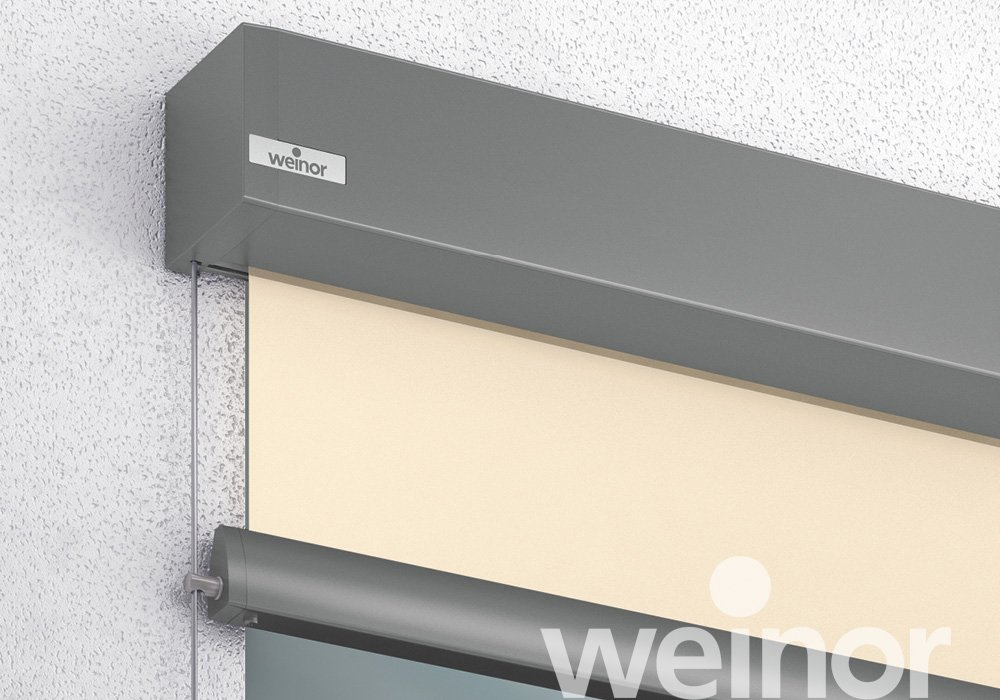

VertiTex II guide rope – the light version
The VertiTex II light version comes with a reliable guide rope and is the ideal solution for a delicate and light look.
Indented rope for specific applications
If it is not possible to fix the rope guide version on the side, the guide rope can be indented, making the VertiTex II fit any application.
Indented rope for specific applications
If it is not possible to fix the rope guide version on the side, the guide rope can be indented, making the VertiTex II fit any application.
VertiTex II Zip details
| Max. width and height | 6m x 3m |
| Max. shadeable area | 15 m² |
| Cassette type 75 (86 x 75 mm) | – |
| Cassette type 92 (101 x 92 mm) | System height up to 2.5 m |
| Cassette type 112 (117 x 112 mm) | System height up to 3.0 m |
| Multi-section unit | Yes |
| Motor drive | serienmäßig, As standard; no crank |
| Wind resistance class according to DIN 13561 | 3 |
| Wind force on the Beaufort scale (km/h) | 6 (up to 49 km/h) |
| VertiPlus design faceplate | Cassette type 112 (square) |
VertiTex II rail guide/rope guide details
| Max. width and height | 6m x 4 m with max. 3.5 m width |
| Max. shadeable area | 14,4 m² |
| Cassette type 75 (86 x 75 mm) | System height up to 3 m |
| Cassette type 92 (101 x 92 mm) | System height up to 3 m from 3.01 m |
| Cassette type 112 (117 x 112 mm) | – |
| Multi-section unit | Yes |
| Motor drive | As standard; no crank |
| Wind resistance class according to DIN 13561 | 2 |
| Wind force on the Beaufort scale (km/h) | 5 (up to 38 km/h) |
| VertiPlus design faceplate | – |
VertiTex II GALLERY
VertiTex II BROCHURE
ABOUT ALL BROCHURES
To download… click the picture to open. Click/tap the 3 dots in the navigation bar and select Download. You can also zoom and go full screen.
Please note that supplier’s brochures often cover many awnings and accessories. Simply click to flip through the brochure to find this one. We can usually supply and fit most items in a brochure, but not always. We can chat through your requirements and let you know what is possible.
FABRIC CHOICES
You have many fabric choices to choose from… The Weinor Brochure isn’t in English, so feel free to also view your fabric choices on this link to available screen colours.
