Aluminium top can be added – optional
As an open awning, the Topas is suitable for almost all installations, whether in a niche, below a balcony or underneath a roof overhang.
Version with roof cover
As an optional extra, add the additional protection in the entry level model to shield against the elements.
Version with roof cover
As an optional extra, add the additional protection in the entry level model to shield against the elements.
Wind resistance up to WP 4
This entry level awning doesn’t compromise. It excels due to its wind resistance up to force 4 on the Beaufort scale.
Let’s stay outside!
Add a high-quality light bar (optional) which is perfect for ambient lighting so you can continue to enjoy the outdoors all evening.
Let’s stay outside!
Add a high-quality light bar (optional) which is perfect for ambient lighting so you can continue to enjoy the outdoors all evening.
Need more protection from the front?
No problem. The optional Valance Plus provides additional heat and glare protection as well as more privacy.
Even more weather protection
Add the optional safety shield and metal valance to protect your fabric and technology from the weather.
Even more weather protection
Add the optional safety shield and metal valance to protect your fabric and technology from the weather.
TOPAS II details
| Max. width 1 section | 7m |
| Max. projection 1 section | 4m |
| Max. width 2 section | 12m |
| Max. projection 2 section | 4m |
| Motor drive | standard |
| Crank drive | optional |
| Tilt adjustment | 5° – 40° |

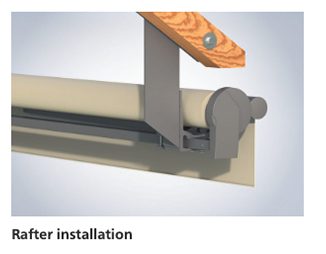

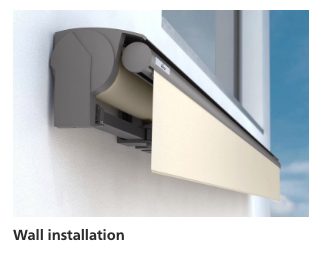

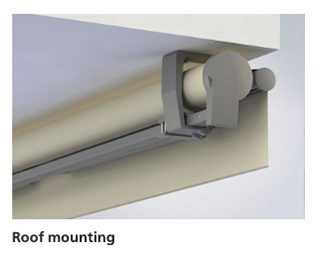

| Installation alternatives | Can be installed on walls, ceilings and rafters |
Optional Volant Plus details
| Max. width | 550cm/600cm |
| Awning max projection | 350cm/300cm |
| Side dimensions | Without roof, without Valence Plus: 215 x 210mm. With a roof, without Valence Plus: 215 x 215mm |
| Side dimensions (W x H) incl. standard bracket | Without a roof, with Valence Plus: 265 x 210mm. With a roof, with Valence Plus: 265 x 215mm |
| Motor drive | optional |
| Crank drive | optional |
| Pitch adjustment | 10° – 20° |
| Valence Plus projection (length) | 210cm |

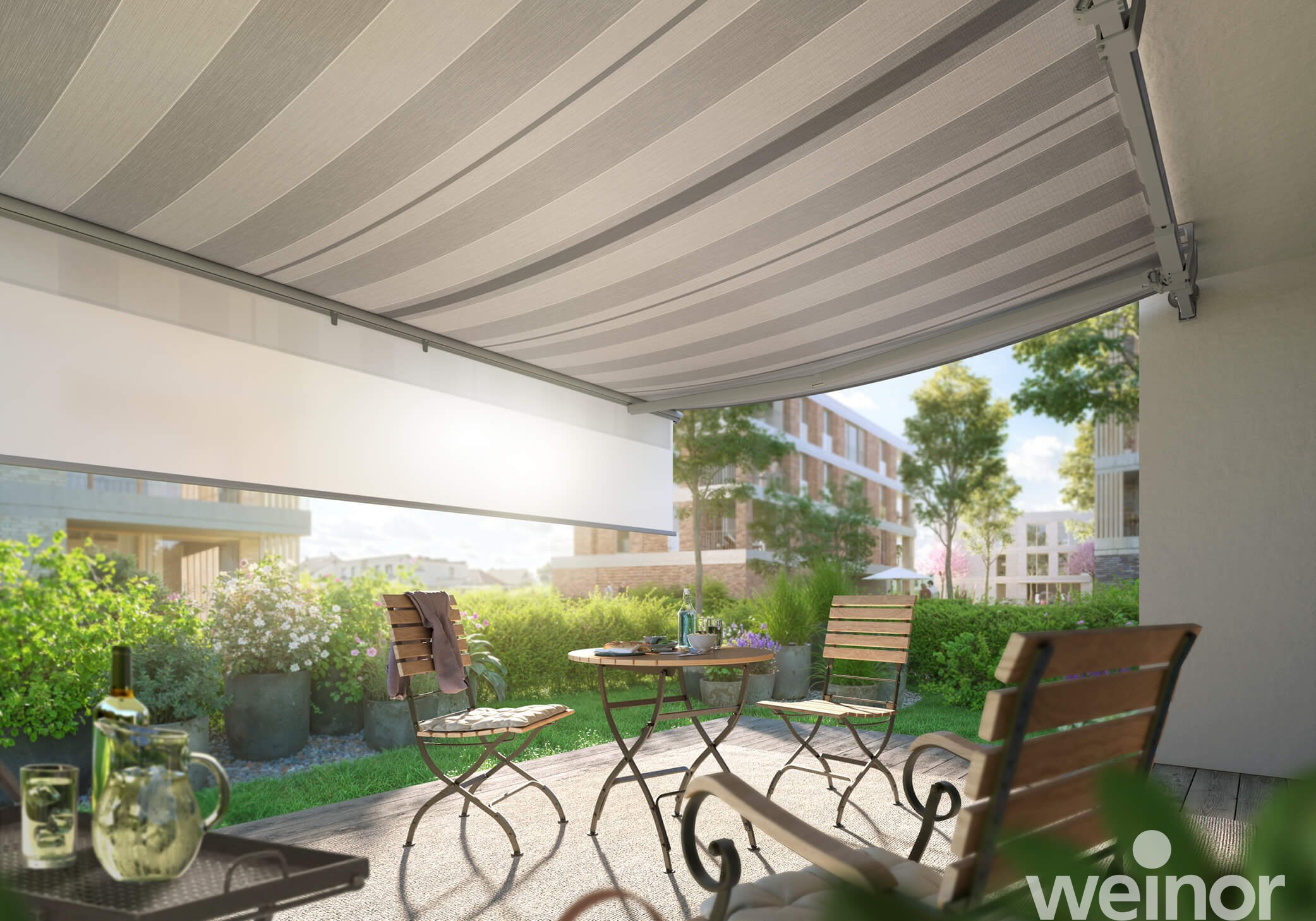

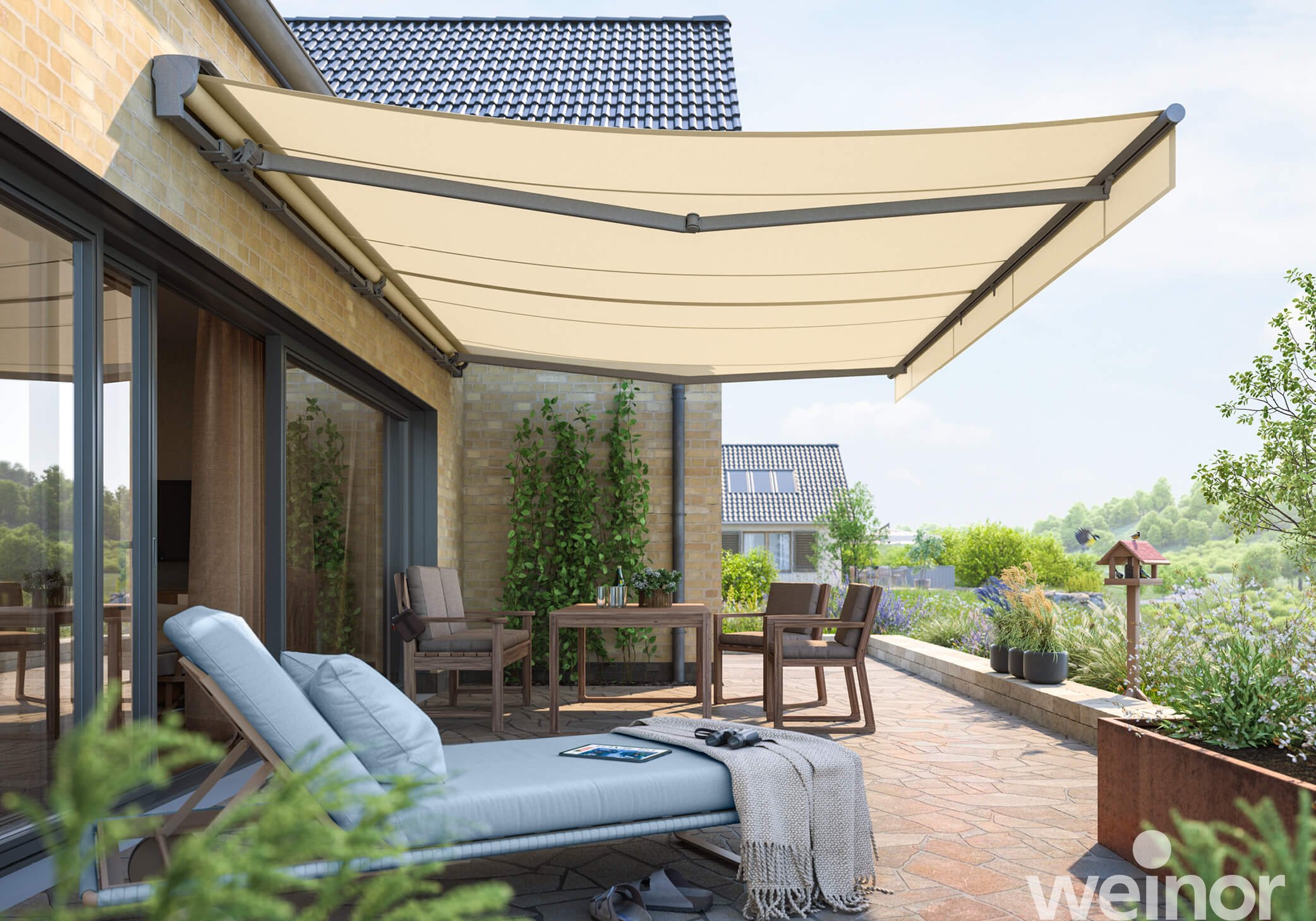

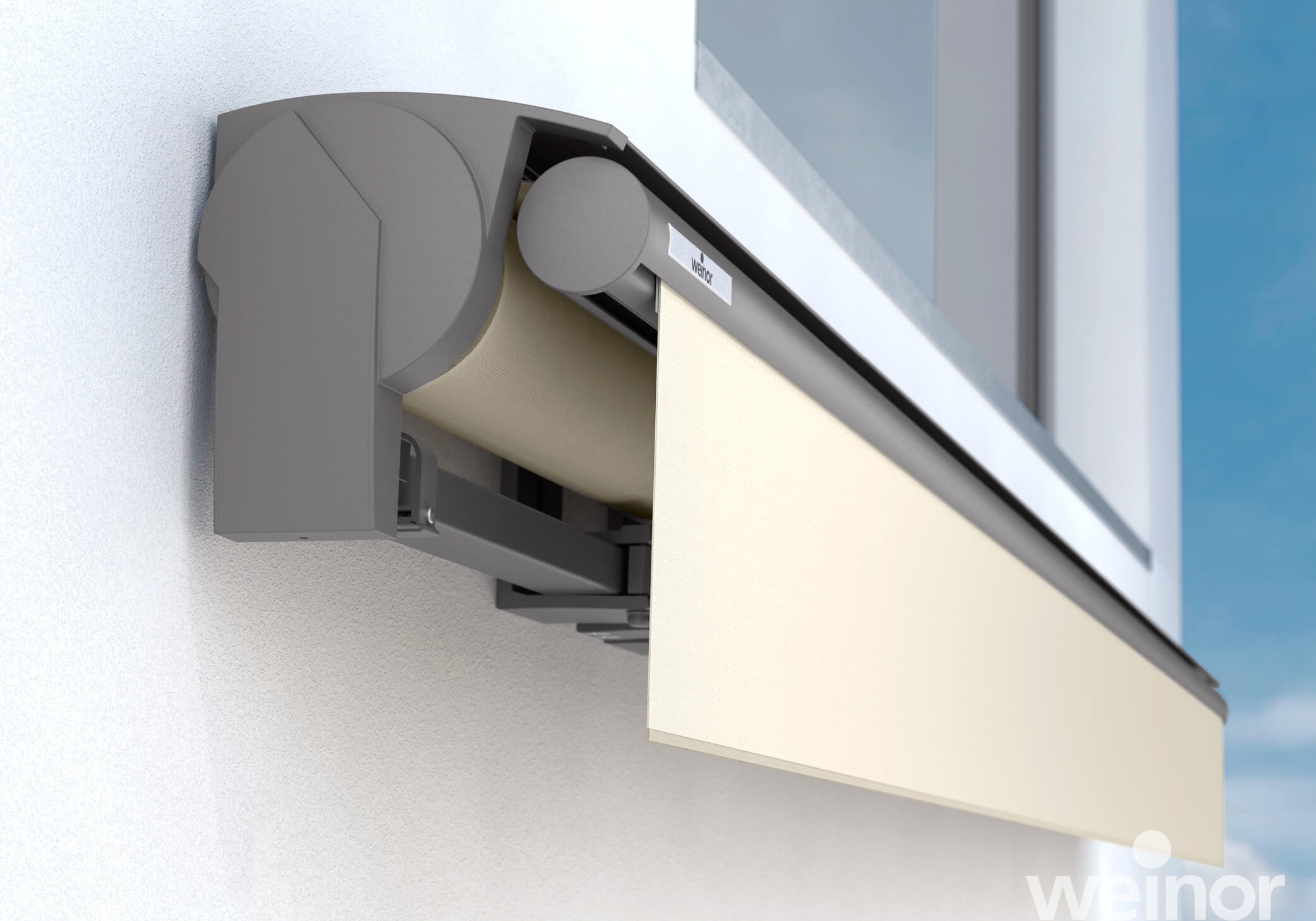

TOPAS GALLERY
TOPAS BROCHURE
ABOUT ALL BROCHURES
To download… click the picture to open. Click/tap the 3 dots in the navigation bar and select Download. You can also zoom and go full screen.
Please note that supplier’s brochures often cover many awnings and accessories. Simply click to flip through the brochure to find this one. We can usually supply and fit most items in a brochure, but not always. We can chat through your requirements and let you know what is possible.
FABRIC CHOICES
You have 171 fabric patterns and more than 200 frame colours to choose from…
